Technical data:

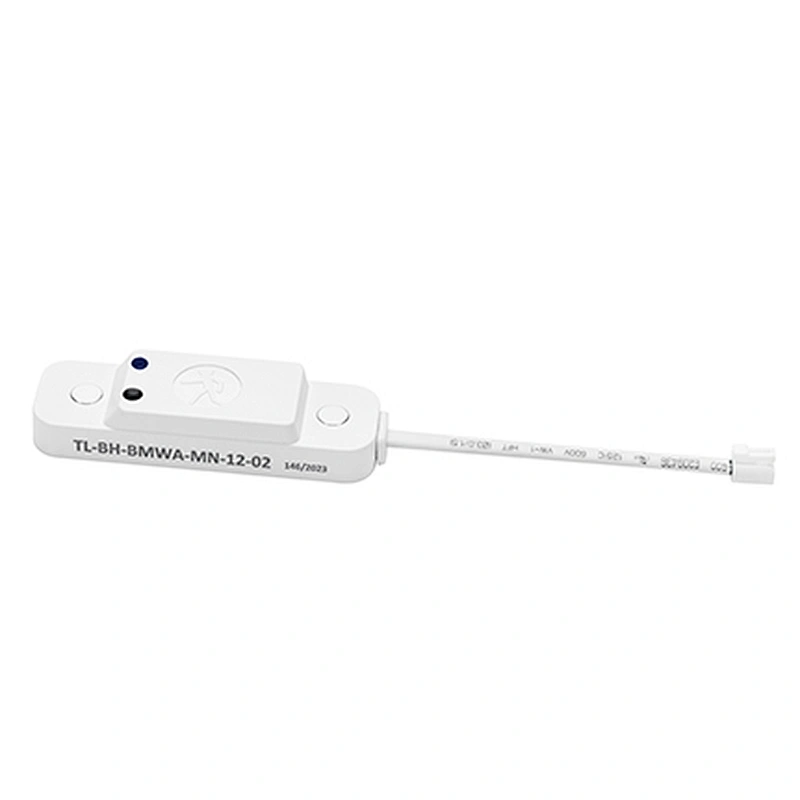

Model No.: TL-BH-BMWA-MN-12-02

Operating voltage: DC12V

Operating current: 150mA(max)

Max. Transmit power: 8dBm

Rx sensitivity: -92dB

Communication frequency: 2405 ~ 2480MHz

Mounting height: <20ft or 6m (Open environment)

Photosensitive range: 10 - 1000Lux

Operating temperature: -20 ~ +60℃

Max. Communication distance: 100m

Dimension: 65.5mm (L) x 20.5mm (W) x 13mm (H)

IP rating: IP20

Weight: 30g

Applications:

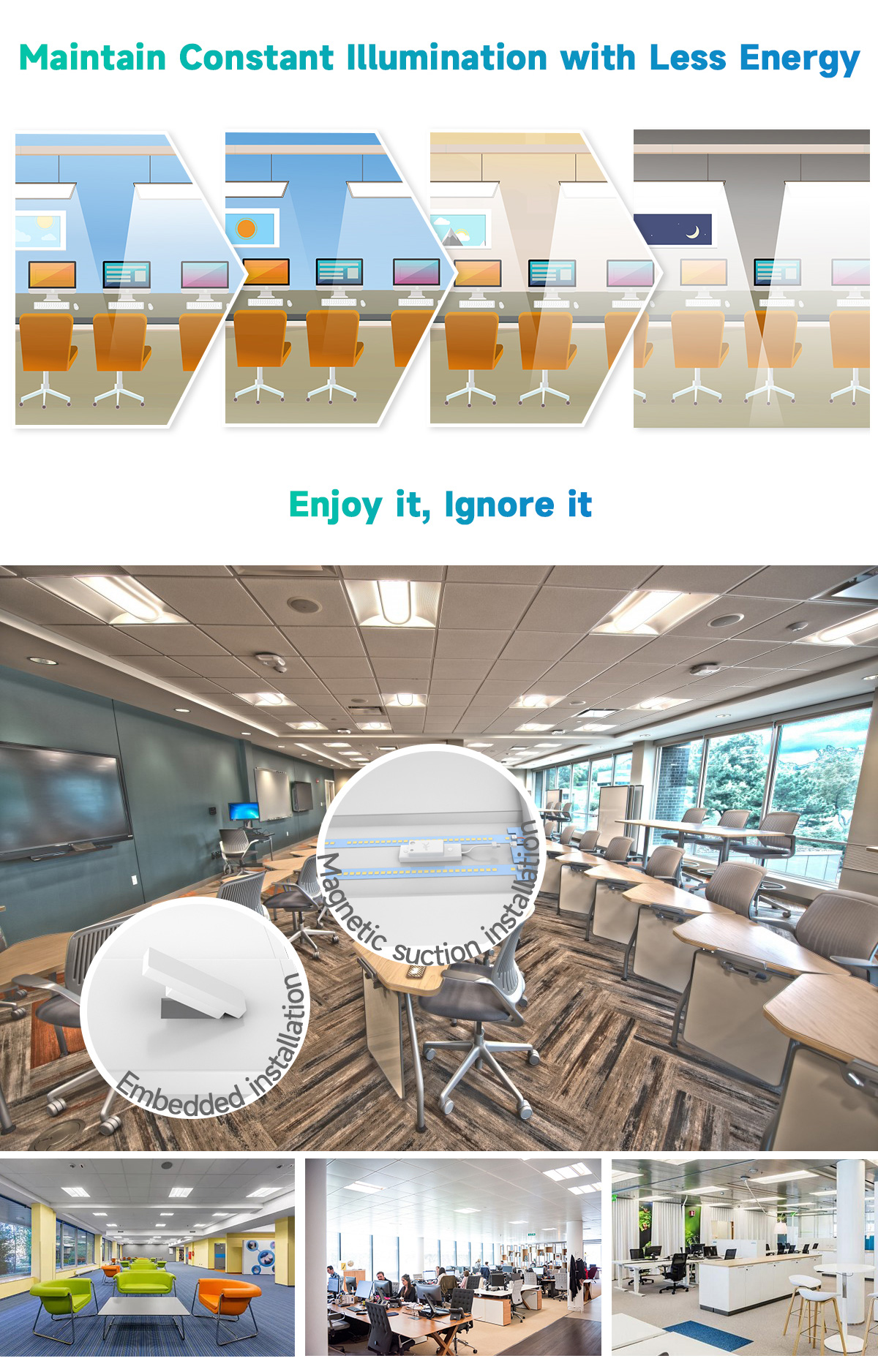

Widely used in office, school, bank, hospital, restaurant and other places need energy-saving/automatic control applications.
